Export and import¶

The matrix can be saved as a YAML file and loaded back, on the same NetBox or another one. Use it to keep a copy of who can do what, to review access in a pull request, or to copy a set of grants from a test instance to production.

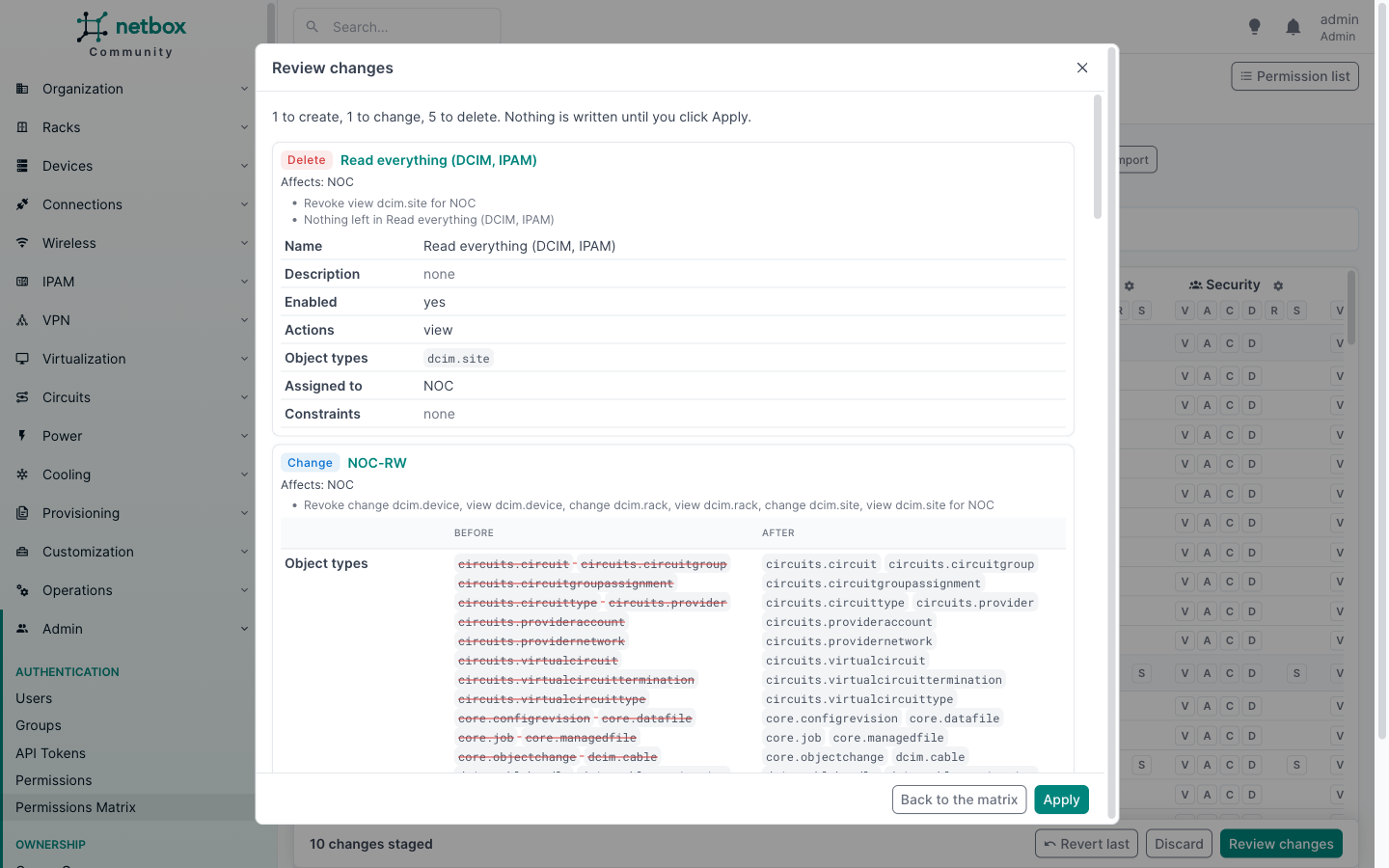

An import never writes anything by itself. It stages cell changes in the matrix, exactly as if you had clicked the cells, and opens the review. Nothing changes until you click Apply.

Exporting¶

Click Export in the matrix toolbar. The file covers what the page shows:

• the columns: the groups and users picked with Groups and Users;
• the rows: the app filter and the search box narrow the object types, as they do on the page;
• every action, whichever tab is open.

The Only rows with grants switch does not narrow the export. Rows without grants still belong in the file: importing it should revoke anything granted there later.

The same file is available at /plugins/permissions-matrix/export/, with the page's query parameters: group_id and user_id (repeatable), groups=0 (no groups), users=1 (every user with direct permissions), app and q. Exporting needs the same rights as viewing the matrix (see Permissions).

The file¶

version: 1
scope:
  principals:
  - type: group
    name: NOC
  - type: user
    name: alice
  actions:
  - view
  - change
  object_types:
  - dcim.device
  - dcim.site
  - ipam.prefix
grants:
  group:NOC:
    view:
    - dcim.device
    - dcim.site
    change:
    - dcim.device
  user:alice:
    view:
    - ipam.prefix
constrained:
  group:NOC:
    change:
    - object_type: ipam.prefix
      permission: Paris prefixes
      constraints:
        site__slug: paris
disabled: {}

• scope records what was shown when the file was exported: the principals, the actions and the object types.
• grants lists, per principal and action, the object types granted without constraints.
• constrained lists the grants that carry constraints, with the permission's name and its constraints, for reference.
• disabled lists cells covered only by disabled permissions.

Groups are named by their name, users by their username and object types by app_label.model. IDs are never used, so the file means the same thing on any NetBox that has the same groups and users.

Importing¶

Click Import and pick a file. You need the right to add, change or delete permissions.

Inside the file's scope, the file is the full desired state:

• a cell listed under grants is granted;
• a cell in the scope but not listed anywhere is revoked;
• anything outside the scope is left alone. A file exported with the app filter on DCIM never touches IPAM, and a file with only the NOC column never touches Ops.

The changes are planned with the same rules as clicks in the matrix: new grants go into simple permissions, and revoking from a shared permission splits it so nobody else loses access.

Constrained and disabled entries¶

The import never creates or changes constraints, and never changes a permission's enabled flag. A cell listed under constrained or disabled keeps whatever covers it on the target today. If the target covers it with an enabled constrained permission, it keeps that access and the review does not warn. The review warns in two cases:

• nothing grants the cell on the target: it stays not granted;
• the target grants the cell without constraints: it stays granted, so the target gives more access than the file. Revoke it in the matrix and add the constraints to the permission by hand if that is not what you want.

To copy constrained access, create the constrained permission on the target first (or let the file's constraints guide you), then import.

Errors¶

The review lists, without staging anything for them:

• groups and users the file names that do not exist on the target, or that you are not allowed to see;
• object types that do not exist on the target, for example because a plugin is not installed.

The import never creates groups or users. A file that is not valid YAML, or not a matrix export, is refused with a message. YAML anchors and aliases are refused too: an export never contains them.

From the API¶

POST /api/plugins/permissions-matrix/import/ takes the file's text and returns the cell changes, which you can send to plan/ and apply/. See the REST API.
